T31-2 forging manipulator

Place of Origin : China

Brand Name : Anyang

Certification : CE

Model Number : T31-2

MOQ : 1 set

Price : Interview

Packaging Details : Sea worthy package

Delivery Time : 90 Days

Payment Terms : T/T or L/C at sight

Supply Ability : 100 sets per year

Contact Now

Anyang Forging Press Machinery Industry Co., Ltd is the special manufacturer of forging manipulator. We have independent product design, manufacturing, installation and commissioning, after sale service etc. Our company have passed the ISO9001:2000 certificate.

This series forging manipulator has whole hydraulic press and mechanism hydraulic press mixed etc drive types.It has manipulator walk,clamp pinch,the clamp head rotate.the clamp hold lifting,the clamp hold slant ,clamp hold turn back etc functions.It used to clamp axes kinds forged piece and blan k to cooperate with forging hammer to do forging work ,to reduce labour intensity of workers.to come true manufacturing mechanization of forged piece.

The forging manipulator including: T31-0.6, T31-1,T31-1.5,T31-2,T31-3,T31-4,T31-5,T31-8,T31-10,T31-16,T31-20,T31-30 and T31-40

Parameter	Unit	T31-2
Nominalload weight	T	2
Max holding moment	T×m	4.8
Holding round steel diameter	mm	100-600
Holding steel plate thickness	mm	0-450
Clamp rod center height	mm	620-1500
Clamp rod overhang	mm	1400
Rail distance	mm	2200
Clamp head rotating speed	r/min	30
Clamp head max diameter	r/min	1155
Frontlifting speed	m/rim	9
Back lifting speed	m/rim	12
Clamp pirder slant angle	o	10
Manipulator run speed	m/rim	45
Working oil pressure	Mpa	10
Total motor power	Kw	70
Machine weight	T	20
Outside size(L×W×H)	mm	5400×3000×3100

Quality T31-2 forging manipulator wholesale

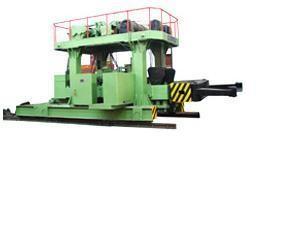

T31-2 forging manipulator Images
